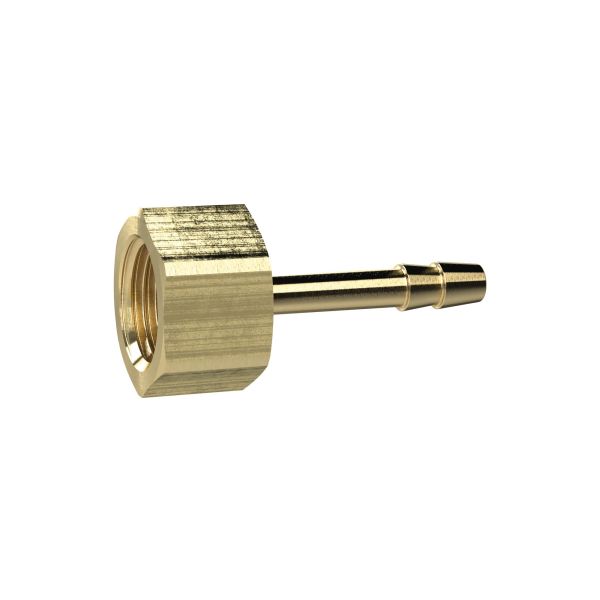

Aufschraubschlauchtülle, G 3/8, für Schlauch LW 9 mm, SW 19, MS

Aufschraubschlauchtülle, G 3/8, für Schlauch LW 9 mm, SW 19, MS

Auf Lager

Lieferzeit 3-6 Tage
Artikelnummer 00-134831
Material Messing CW614N
Typ-Nr. MS239A3809

Beschreibung / Aufschraubschlauchtülle, G 3/8, für Schlauch LW 9 mm, SW 19, MS

Aufschraubschlauchtülle, G 3/8 i., für Schlauch LW 9 mm, SW 19, Messing, Arbeitsdruck max. 25 bar, Betriebstemp. max. 150 °C

Weitere Informationen

Gewinde G 3/8
Betriebstemperatur max. 150
Arbeitsdruck max. 25
Material Messing CW614N
L1 37,0
L2 11,0
SW 19
für Schlauch LW 9
Manufacturer Riegler
vertrieben durch:
Münchner Druckluftzentrale GmbH
Lochhamer Str. 29a
82152 Planegg-Martinsried
Tel. 089/3515931
Mail: vertrieb@druckluftzentrale.de

Anhänge

Beschreibung Datei
Technische Dokumentation

134831_MS239A3809-Kundenzeichnung.pdf
